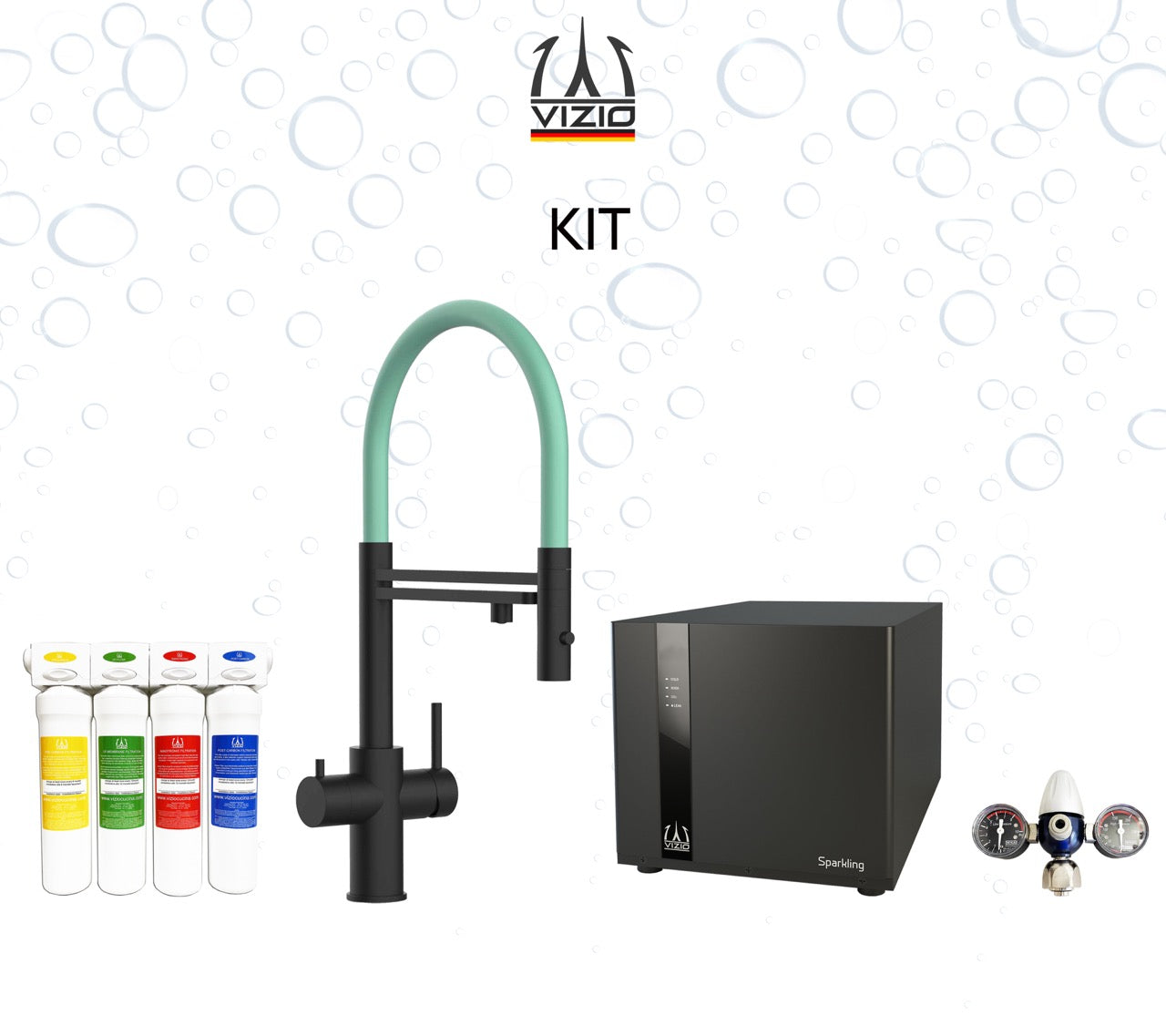

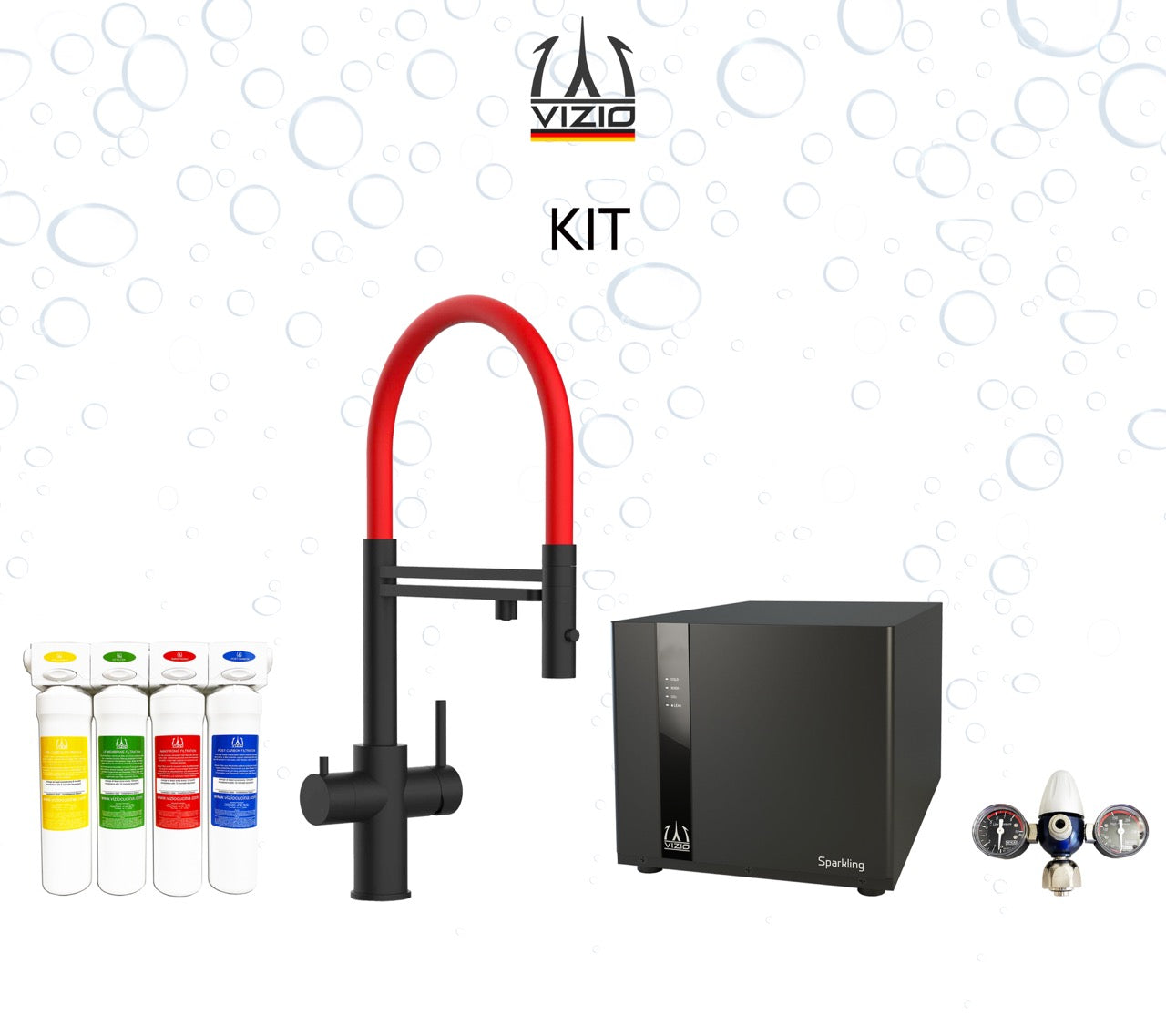

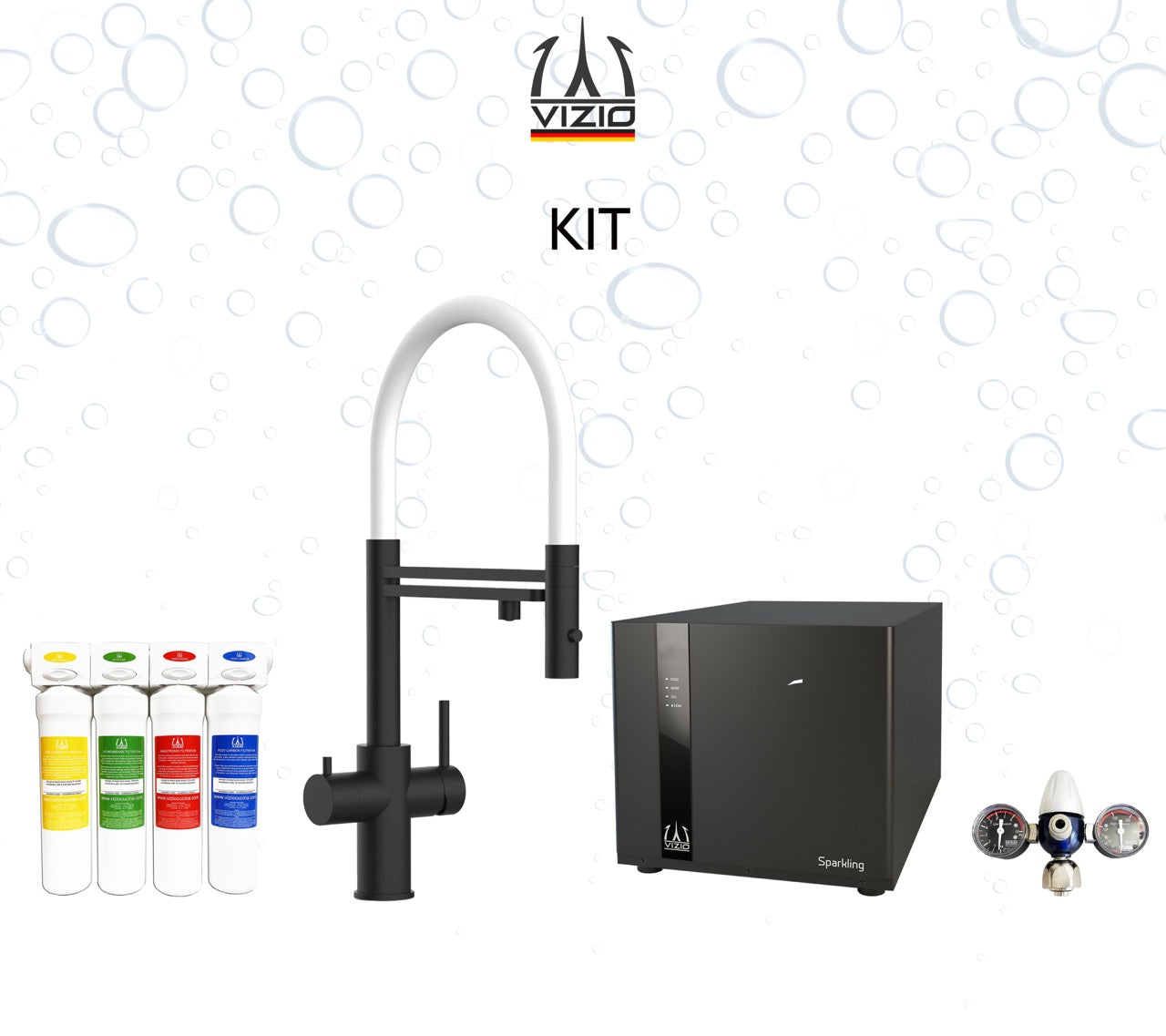

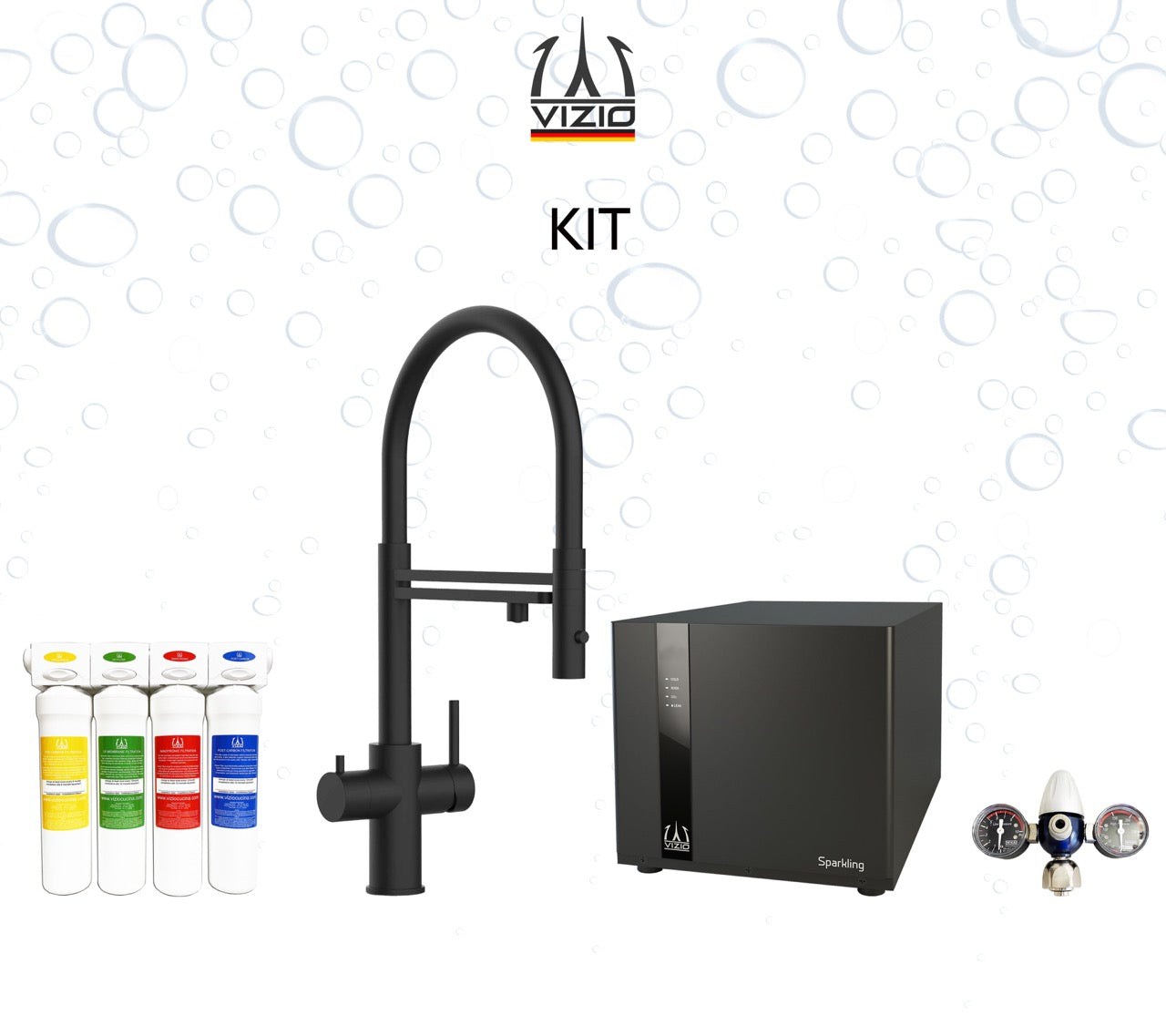

COMPLETE KIT 5 Way Kitchen Filter Tap in Solid STAINLESS STEEL with 360° swivel spout and 2-jets removable Spray, Matt Black PVD + SPARKLING Machine + CO2 pressure reducer + Activated Carbon Water Filtration System

Sparkling Machine (VZSPARKLING01) + 5-Way Kitchen Filter Tap in SOLID STAINLESS STEEL AISI 316, Kitchen Faucet 5 in 1, Sink Mixer, with 360° swivel spout and 2-jets detachable Spray - for hot, cold and 3 types of filtered water with separate channel and separate handle on the tap for filtered water control (VZFX511100) + Activated Carbon Water Filtration System (VZFILT0400) + CO₂ pressure reducer (VZRIDCO2DD)

VZSPARKLING01 DESCRIPTION

An ultra-compact system for chilled and sparkling drinking water

Compact and minimalistic design in just

24,5 cm Height

26,5 cm Length

45 cm Depth

Due to the very compact and minimal design, our SPARKLING system fits everywhere! Fits into any kitchen, no matter how small!

Installation example!

Here you can see how small the required space of our system is! There is enough space for other items, such as trash cans, containers, etc.

In this installation case, the total height of the sparkling machine and the activated carbon filter system is 58 cm, but it is not necessary to install them on top of each other. This is, as already written, only an example.

Please note that the CO2 bottle is not included in the box

Patented DIRECT CHILL System

Most sparkling water systems currently available on the market have a 0.75 liter tank that is not even enough to fill a 1 liter carafe. With 3 glasses of water, is already over!

Our system is smaller and also there is NO TANK! This is an incredible benefit!

In this system there is no cooling tank where the water is chilled and stored, but a patented 'Direct Chill System' which means there is no need to disinfect frequently the system because there is no tank! All tank systems must be disinfected at least once every 6 months to prevent algae and bacteria growth! This is not necessary with our Sparkling!

With patented DIRECT CHILL system, you can fill a lot of carafes and a lot of glasses non-stop. You don't have to wait for minutes until the water has been enriched with CO2 again. Even more, the first 3/4 bottles of sparkling/chilled water will be at 2,5 °C !

After that, you can go ahead and use any bottles at max. 6° fill - no more.

Say NO to PLASTIC

But let's not forget the most important thing! Finally no more lugging around soda bottles and save a lot of money at the same time. You are also helping our amazing home called Earth - it's an incredible support for the environment, since you are simply no longer driving the spiral of resource waste by transporting sparkling water, cleaning and re-labeling the glass bottles, etc. We don't even need to talk about plastic bottles because they should be completely abolished.

H₂CO₃ - What is Carbonic Acid?

We also looked at soda carbonation systems! These are very small and do not require a power supply, but the bubble experience is not even worth mentioning! However, we looked into them to understand! Water and CO2 only combine under certain conditions, one of which is that the water must have a temperature of less than 3°C. In a professional chilled sparkling system, a high-pressure reaction is triggered that produces carbonic acid (H2CO3), which gives the water a particularly refreshing and long-lasting taste.

In soda carbonating systems, this does not happen. CO2 is simply introduced, but after a short time the water is no longer as sparkling as before. You can clearly see how the CO2 evaporates almost immediately. If you fill a glass of water with bubbles from a soda bubble system, the sparkling effect disappears after a few minutes. A soda bubble system can blow 2 to a maximum of 3 g of CO2 into the water. In a professional bubble system, not only is the temperature perfectly controlled, but in the pressurised 'carbonator' the water is combined with CO2 and carbonic acid is obtained from the CO2! If you fill a glass of sparkling water with a chilled sparkling system, such as our SPARKLING, it is still sparkling after hours. For your information, our SPARKLING can reach CO2 levels of up to 8 g per litre. San Pellegrino has a CO2 content of around 7g per litre, just for comparison!

And that is why we choose a chilled sparkling system!

• Easy Installation: A smart connection system! The water supply and outlets are all located on the top side of the system and are directed upwards! This permits extremely easy installation and placement, as the pipes do not kink at the back when you slide the system into the kitchen unit! Connection pipes are located above the cooler ventilation and therefore are not directly exposed to heat dissipation!

•  Safety first: 2-position Electronic Fuse in case of leakage! It is equipped with 3 sensors which detect uncontrolled water leaks and shut down the system completely.

• Vacation Mode: A switch to turn on/off the cooling system !
  You can switch off the cooling system to save energy, If you go on holiday for a long time

• Quiet and super heat dissipation: Thanks to the DIRECT CHILL system, the machine is less stressed and therefore SUPER QUIET! Furthermore, the system did not heat up more than 45 ° C during tests in 1 cubic meter!

PRODUCT INFORMATION

• Dimensions: width 26.5 cm x depth 45 cm x height 24.5 cm
• Empty weight: approx. 14 kg
• Continuous delivery of sparkling water 3.5 liters/min at >6°C (210 liters/hour)
• Continuous delivery of cold water 3.5 liters/min at >6°C (210 liters/hour)
• Maximum power consumption with cooling water: 100W
• Power consumption in standby mode >5 W per hour
• Lowest energy consumption >5 W
• Maximum power consumption 300 W at full load
• Connection 220-240V/ 50Hz
• No maintenance or cleaning necessary, because the water enriched with CO2 has an antibacterial effect! - DIRECT CHILL
• No tank, so no algae, no bacteria.

2 YEARS warranty - 10 YEARS guaranteed spare parts availability

KITCHEN TAP DESCRIPTION

• Ideal for activated carbon filter systems and osmosis filtration systems as there are no metal migration effects
• 360° swivel spout
• 35mm ceramic cartridge
• Cold start: handle opens on cold and moves only forward 90° - perfect for people who have the sink close to the wall

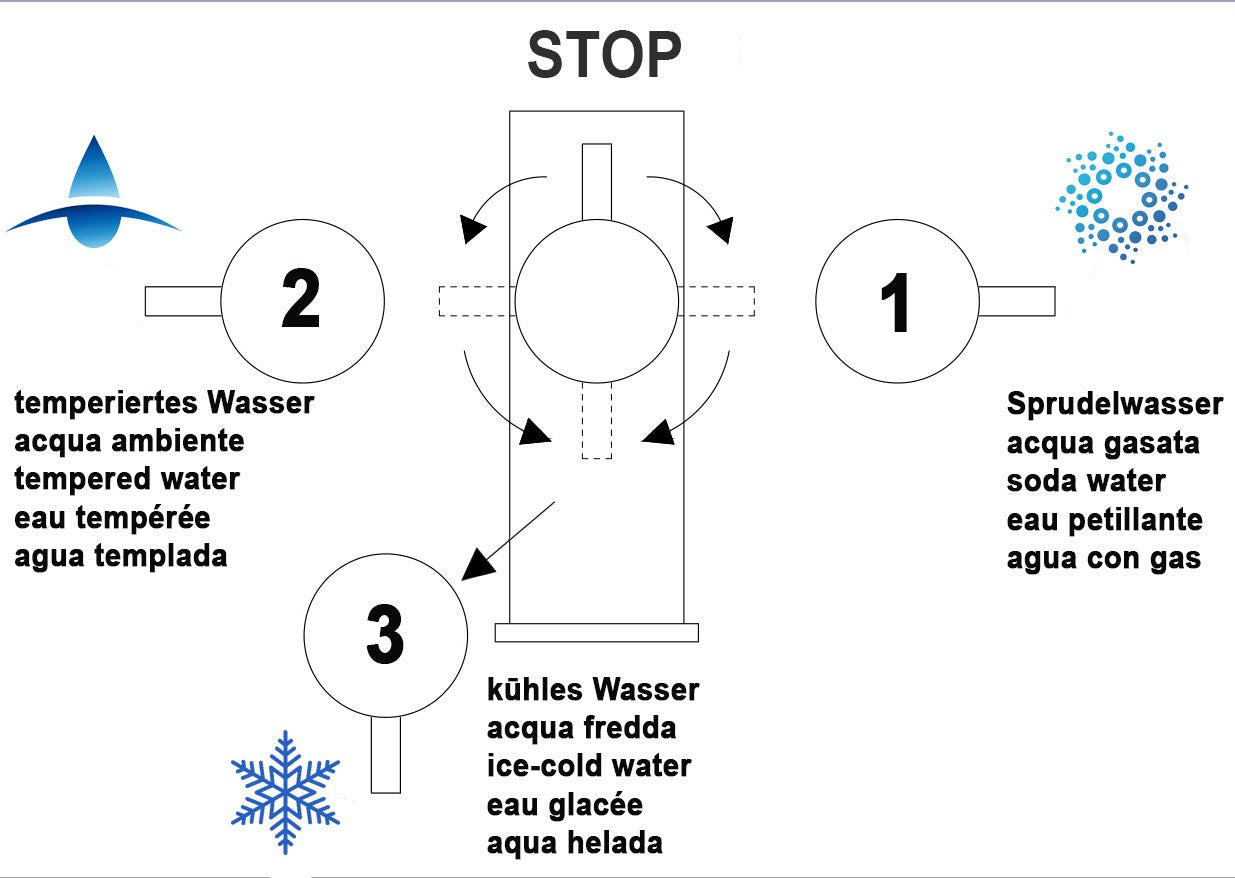

• Multi-Selection Cartridge for filtered water handle - Separated inner stainless steel AISI 316 channel for filtered water.
• Movable colored silicone spout - detachable hand-spray with action-range of approx. 60 cm
• Hand-spray with 2 jet types: single jet or shower jet

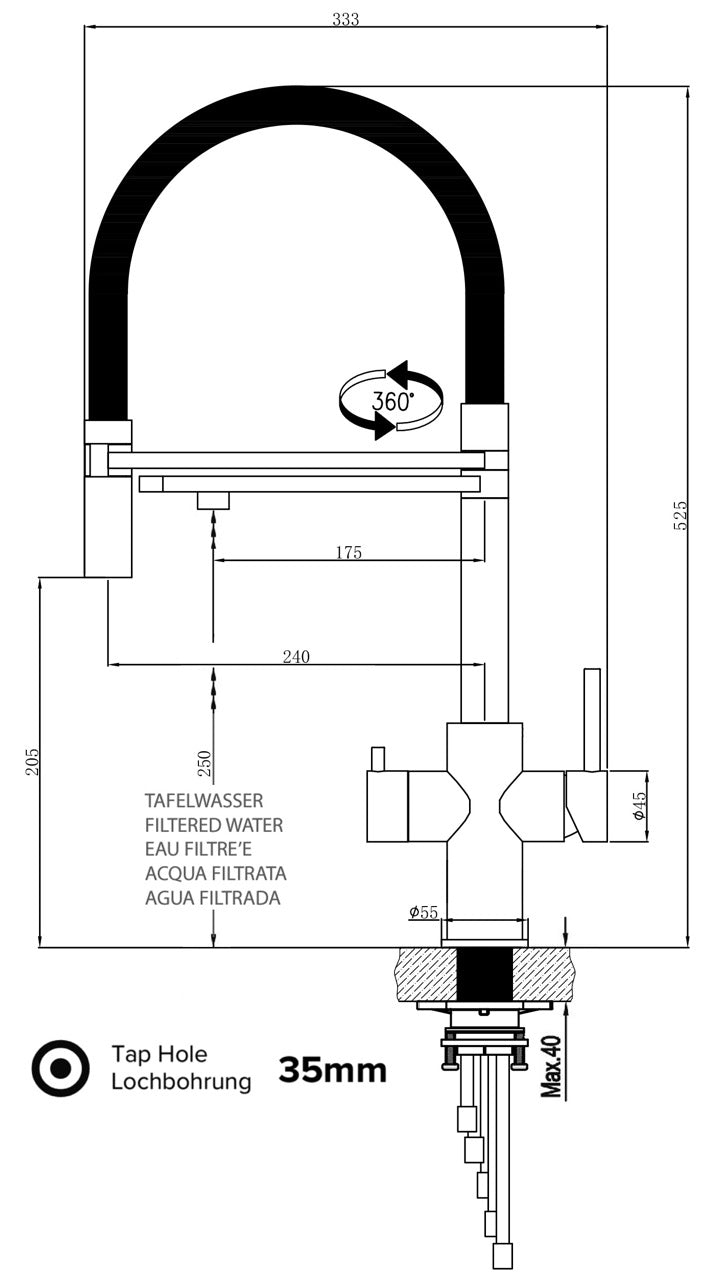

• Sink hole Ø 35mm.
• Recommended operating pressure: min. 1.5 bar – max. 4.5 bar / Recommended water temperature: min. 5°C – max. 65°C
• SOLID STAINLESS STEEL 316 - Surgical Steel
• DVGW KTW A certified flexible tubes with female 3/8" nut complete with built-in gasket

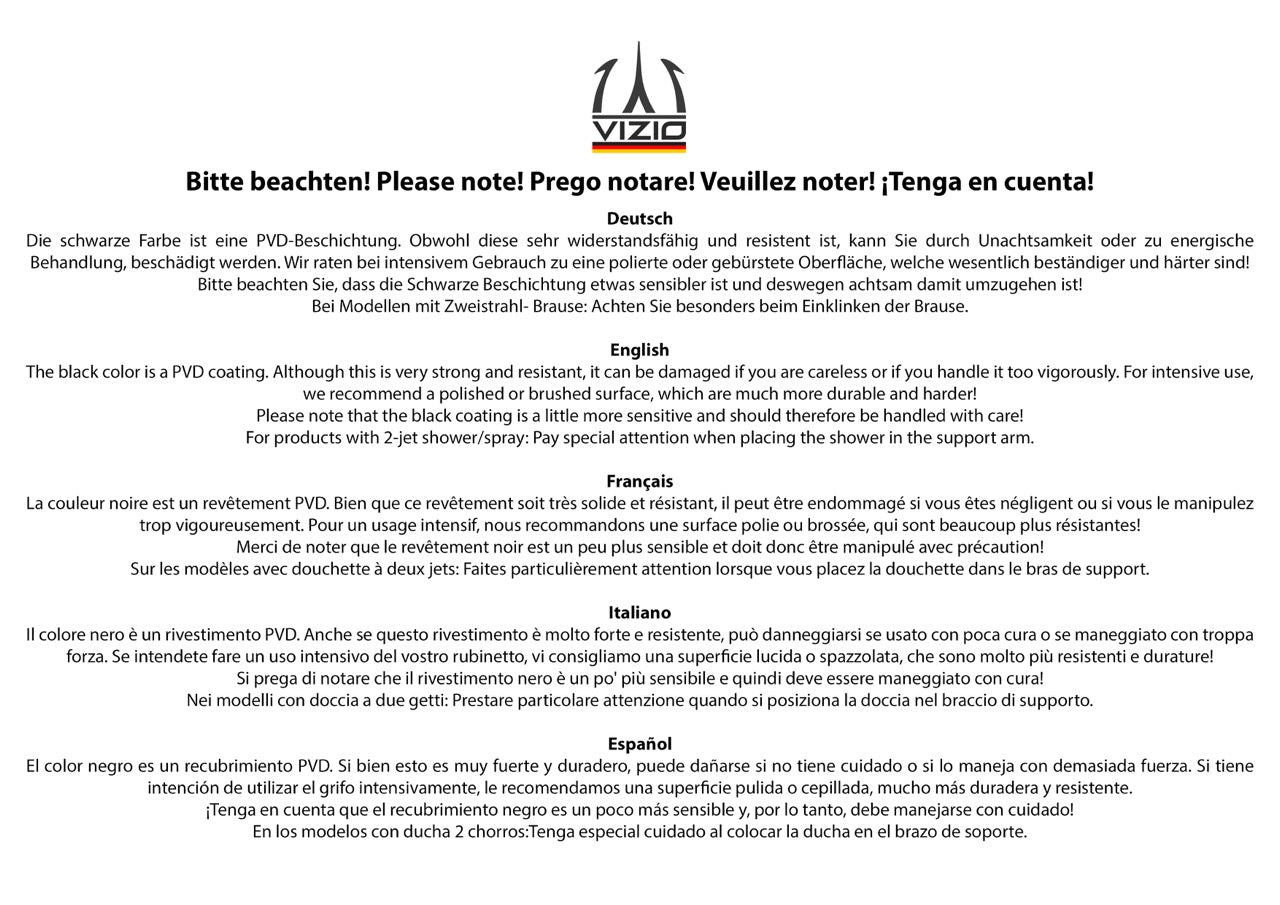

• The black color is a PVD coating. Although this is very strong and resistant, it can be damaged if you are careless or if you handle it too vigorously. For intensive use, we recommend a polished or brushed surface, which are much more durable and harder! Please note that the black coating is a little more sensitive and should therefore be handled with care! Pay special attention when placing the shower in the support arm.

SOLID FIX SYSTEM - a stainless steel disc and brass nut with two blocking screws on it to fix the tap firmly with a simple screwdriver. The 'root' of the tap is a solid 33mm steel cylinder which gives a diametral firm and stable hold on the sink

All our products are made respecting European Norm and laws to reduce and eliminate as much as possible lead (PB-plombium) as well as heavy metals to minimum level. We follow and fulfil European Standards: EN 246, EN 200, EN 248, EN 817, EN 3448 and EN 50930/6

2 YEARS warranty - 10 YEARS guaranteed spare parts availability

TECHNICAL ADVANTAGES

• 2-JETS SPRAY: A special feature is our specially developed, very solid hand shower. The switch between normal jet and shower jet function is pressure-independent. Even with a small water volume, you can have a very nice 'rain' effect which washes only what it is supposed to wash. You will find this function only with us! A simple movement and the hand shower is locked in position. No unintentional loosening and falling! In addition, we have used special O-rings, which allow a soft fit and avoid scratched surfaces. Beautiful to see and easy to clean!
• SAFETY RINGS: No more unstable spout! Thanks to food-safe PE plastic safety rings, the spout is firmly upright, but has enough space to rotate easily. O-rings are also less worn. This ensures a high longevity of your kitchen tap.
• FIX&LOCK: SOLID FIX SYSTEM - a stainless steel disc and brass nut with two blocking screws on it to fix the tap firmly with a simple screwdriver. The "root" of the tap is a solid 33mm steel cylinder which gives a diametral firm and stable hold on the sink.
• FLEX-READY: Our Panzerflex connection hoses are not only longer than average (45 cm), but they also have 3/8" sealing rings in the connection nuts. This makes installation even easier. All Panzerflex connection hoses are DVGW KTW A1 certified. Algae and bacteria cannot adhere to the surface and thus cannot form "biofilm". Plastics cannot be rubbed off due to the high density of the material. For constantly clean water.

VZFILT0400 DESCRIPTION

4-Stage Activated Carbon Water Filtration System – Complete Home Drinking Water Filter for 1 Year of Pure, Fresh Water

Why should you choose VZFILT0400?

• Easy Installation: This filter system is easy to install without special technical knowledge. The photographic instructions are clear and concise and describe every step.
• Plug&Play:The filter cartridges are plug & play: you simply snap them into place until you hear a "click", so you are sure you have inserted the cartridge correctly. Even the replacement is simple: just press the release button placed on the main body to release the filter cartridge. The water stops automatically when the cartridge is removed.

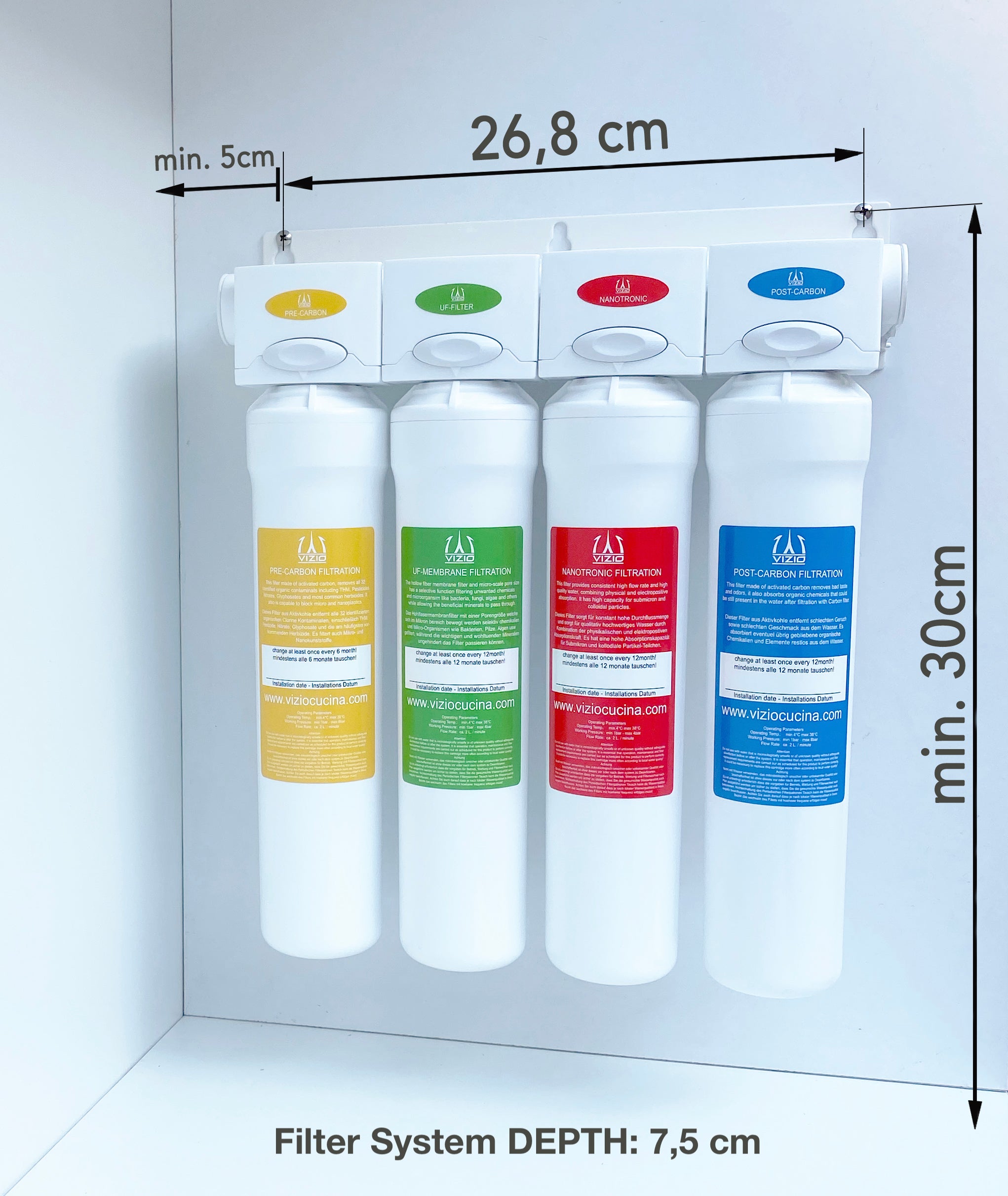

• Compact Design:This filter system can be mounted with 3 short screws (included in the box) standing or on the wall of the base cabinet. The screws are kept short to avoid breaking through the wall of the base cabinet! (nevertheless, please check the wall thickness beforehand that the screws are not too long!). For mounting on the wall / wall are included 3 dowels and longer screws.

We have really thought of everything here to facilitate the installation and to offer you the best that the most advanced filtration technology can give today! Once the installation is completed, you can enjoy good and pure water from your faucet good conscience.

TO ENSURE ALWAYS GOOD AND PURE WATER, IT IS IMPORTANT THAT YOU REPLACE THE CARTRIDGES REGULARLY: 6 months for PRE CARBON cartridge (you will find 2 cartridges in the box) and 12 months for the other 3 cartridges - To remind you when you installed the cartridges, we have left a blank space on the cartridge label where you should write the date of installation. Replacing the cartridge is a snap! Simple, safe and effortless!

This filter system has 4 filtration levels to ensure perfect water throughout the specified maximum service life!

01. PRE-CARBON	02. UF-MEMBRANE	03. NANOTRONIC-FILTRATION	04. POST-CARBON
This activated carbon filter removes all 32 identified organic contaminants, such as THMs, pesticides, nitrates, glyphosfates, and the most commonly used herbicides. It can also block micro and nano plastic particles.	Hollow fiber membrane filter with only 2micron pore size has selective function to block unwanted chemicals, microorganisms, bacteria, fungi, algae and other organic impurities. Vital minerals are not blocked.	This filter, with its physical and electropositive absorption capability, ensures that a consistently high flow rate is maintained despite its tiny pores of only 2 microns. It has a high capacity to block submicron and colloidal particles. Bacteria and even certain types of viruses are intercepted here. Nanoplastic particles do not have another insurmountable barrier here either.	This activated carbon filter removes the bad taste and smell of chlorine or algae, it absorbs organic chemicals that might still be present in the water after the filtration of the first activated carbon filter to create perfectly natural water.
Ideal operating temperature: min. 4° C max. 38° C Working pressure: min 1bar - max 8bar Max. flow rate: approx 2-3 L. / pro Minute	Ideal operating temperature: min. 4° C max. 38° C Working pressure: min 1bar - max 4bar Max. flow rate: approx 2-3 L. / pro Minute	Ideal operating temperature: min. 4° C max. 38° C Working pressure: min 1bar - max 4bar Max. flow rate: approx 2-3 L. / pro Minute	Ideal operating temperature: min. 4° C max. 38° C Working pressure: min 1bar - max 8bar Max. flow rate: approx 2-3 L. / pro Minute

FILTER DESCRIPTION

01. PRE-CARBON: With the first filter: PRE-CARBON which, with pores as small as 5 microns, removes all 32 identified organic contaminants such as THM, pesticides, nitrates, glyphosfates and the most common herbicides. The 5 micron pores can block micro and nano plastic particles. Many competing filtration systems have only this first stage of activated carbon as primary filtration, while here with us this is only the first barrier that stops the mass of contaminants. Therefore, this filter cartridge must be changed every six months. (You will therefore find 2 cartridges in the box!)

02. UF-MEMBRANE: The second stage is an ULTRAFILTRATION MEMBRANE with minute pores of only 2 microns. This filter stops not only most harmful bacteria in the water, but virtually all fungus and algae spores that may be in it, as well as organic contaminants that are trapped here. This filter must be changed every 12 months.

03. NANOTRONIC-FILTRATION: The third stage is a filter system which is patented by a Korean company and lets us use the patent under license: The interaction of certain internal ceramic parts creates an electropositive field that traps and blocks microorganisms and viruses! Here, too, we have extremely small pores of only 2 microns in size which continue to trap the smallest elements and impurities and thus practically also act as a second ultrafiltration. The replacement interval for this cartridge is also 12 months.

04. POST-CARBON: The fourth stage is an activated carbon filter, but this time with a more compact structure and with pores as small as 2 microns! Thus, yet another insurmountable barrier is placed in the way of the smallest impurities. Here, all chlorine residues and other chemical components that may have passed through the first activated carbon filter are finally removed. In this stage, the taste of your water is also improved as all foreign and external chemical components are eliminated. So now you have the NATURAL taste of your water without vital minerals removed from it by too aggressive filtration! (As for example with excessive OSMOSE or REVERSE OSMOSE filtration where only H2O is produced without any minerals and moreover at least 3liter of water are wasted to create 1 liter of filtered water!!!). This filter cartridge only needs to be changed every 12 months.

VZRIDCO2DD DESCRIPTION

• Pressure reducer for big CO₂ bottles
• Easy fixation on the bottle, no special skills needed
• Easy to read Manometer and high performance fine regulation
• Overload Safety Valve
• Working Pressure Preset
• Connection to CO₂ tube 6mm
• 6mm tube 1,5m long to connect to sparkling machine, included

The best Precision CO₂ Pressure reducer available on the market with high performance and precision valve for fine tuning. Easy readable big Manometers.

This Pressure reducer allows you to use big CO₂ Bottles which you can lend or buy in local Professional Shops. Please verify you have proper Shop that can reload your CO₂ Bottle once empty. We recommend a 2-liter CO₂, which is the right size, and where a full recharge should cost from 10-20 Euro. With a 2-liter CO₂ Bottle you can generate up to 3-6month CO₂ Water in a 4person Household, depending on how strong you like to have the Sparkling Effect.

IN THE BOX

• Nr. 1 Sparkling Machine
• Nr. 1 Schuko 220V connection cable
• Nr. 1 Kitchen tap as described
• Nr. 5 Flexible tubes: 1 marked red and 1 marked blue with 3/8" nut (DVGW KTW A certified) for hot and cold water and 3 neutral to link our tap to your filter system (3/8')
• Installation instructions, manufacturer's contact information and warranty.
• Nr. 1 Connector head with Plug&Play fastening and water stop function
• Nr. 2 PRE-CARBON Filter (6 months)
• Nr. 1 Ultrafiltration membrane Filter (12 months)
• Nr. 1 Nanotronic Filter (12 months)
• Nr. 1 POST-CARBON Filter (12 months)
• Nr. 1 John Guest angle shut-off valve according to DIN1988 (DVGW certified)
• Nr. 6 Screws for fixing the main filter head to the wall (3pcs short variant and 3pcs long screws with dowels)
• Nr. 2 Elbow connectors for connector head
• Nr. 1 Connecting pipe according to drinking water regulations (6mm diameter - 2m length)
• Nr. 1 Pressure reducer as described
• Nr. 1 CO₂ 1.5m connection tube to the bubble machine
